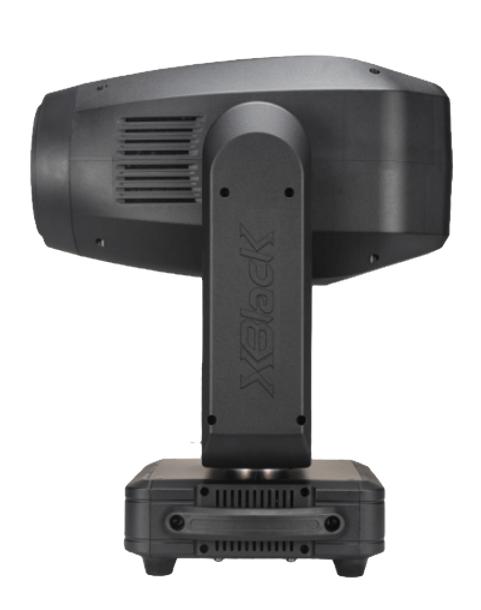

XB480

FRAMING | PROFILE | BEAM | WASH | HYBRID

The XB480 is a 480 watt 16,000 lumen hybrid performance moving head profile and wash light that is IP20 rated for indoor use. Using the latest generation LED engine, lens, framing system and zoom ratio combination for maximum light output and control.

Screen Shot 2023-09-11 at 10.08_edited.png

PRODUCT PERFORMANCE

This rock solid workhorse fixture can be used for anything from aerial effects, tight beams, wide washes, and camera ready key light to cover any live performance needs.

PRODUCT SPECS

OPTICAL

  • Source: 480 watt LED engine
  • Output: 16,000 lumens
  • Color temperature: 6500-2700k
  • Full framing system (4 blades with rotation)
  • Zoom range: 4.5° - 55° linear zoom
  • Minimum LED Lifespan: 20,000

DYNAMIC EFFECTS

  • Pan 540° / 630° (16 bit)
  • Tilt 270° (16 bit)
  • Dimmer: 0-100% electronic linear dimming (16 bit)
  • Strobe: 1-25Hz, synchronized / random
  • Zoom: 4.5° - 55° linear zoom
  • Iris: 5-100% electronic iris
  • Frost: Heavy frost
  • Prism: 5 facet, rotating, bi-directional
  • Color: Full CMY Color mixing
  • Color wheel with 7 dichroic colors
  • Variable linear CTO color temperature 6500k-2700k
  • Rotating Gobo wheel with 7 gobos (16 bit)
  • Static Gobo wheel with 8 gobos
  • Animation Wheel
  • Framing system: 4 blades with 45° module rotation (16 bit)

CONTROL/CONNECTIONS

  • DMX
  • RDM
  • ArtNET (RJ45)
  • Control Modes: 34 channel (Basic) / 54 channel (Extended)
  • LCD display with onboard control panel
  • Data input/output: 5 pin DMX
  • Power input: True1

ELECTRICAL

  • Input range (AC 100-240v 50/60Hz)
  • Max consumption: 850 watts

COOLING

  • Advanced cooling system: Utilizes both liquid cooling and variable speed fans.

PHYSICAL

  • IP20 indoor rated
  • Weight : 66.lbs (30kg)
  • Dimensions: 28.3” x 15.1” x 11.4” (720mm x 385mm x 290mm)
