Flipside FX

EYE CANDY | WASH

The XBlack® Flipside is the cure for boredom in lighting design, providing multiple options in one fixture.



One side is 5 cell pixel controlled RGBW wash strip with tight beam or wide wash coverage, the other side is ultra bright segment controlled RGBW strobe strip.



Get completely different looks using both sides of the fixture.

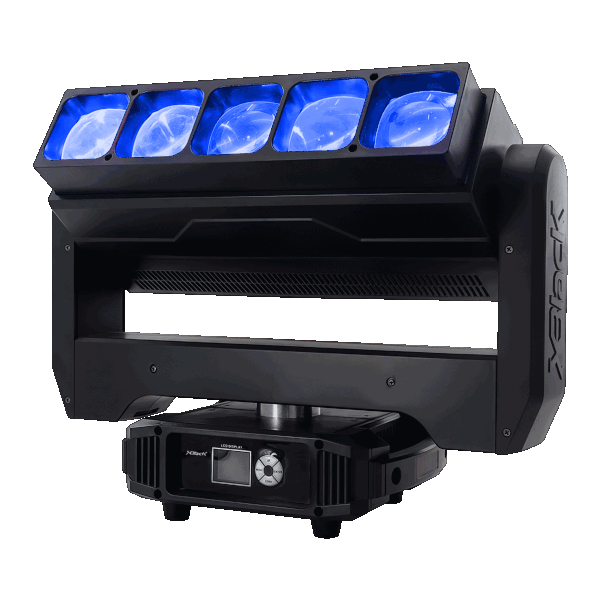

flipside - rotator.gif

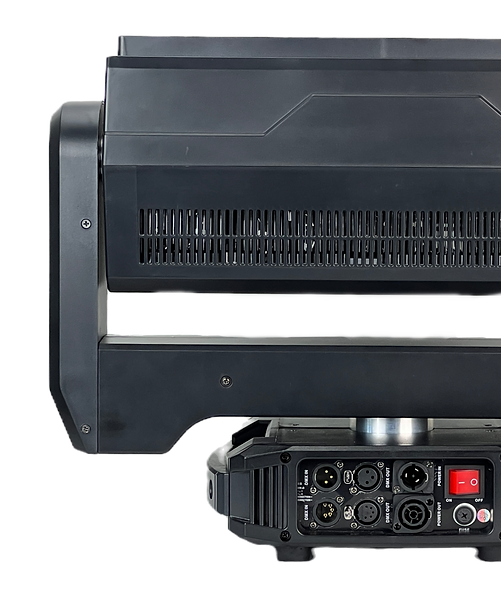

UP-Flipside FX - PURPLE.png

PRODUCT OVERVIEW

Ultra bright multi purpose Strobe, Wash and Beam that gives you dynamic visual options. The front offers an ultra wide wash and beam effect, while the back offers a a full color strobe strip.

THE FLIPSIDE EXPERIENCE

Two sides. Infinite possibilities. All in one fixture. The Flipside FX is not your ordinary light. One side offers a pixel-controlled RGBW wash, while the other dazzles with a segment-controlled RGBW strobe. With infinite pan & tilt, an impressive zoom range, plus unlimited color mixing it’s the game-changer your stage needs!

PRODUCT SPECS

OPTICAL

Wash side:
  • Source: 5 x 60 watt RGBW pixels
  • Zoom range: 4°-45°
  • Pixel control
Strobe side:
  • 42 x 3 watt 6500K cool white LED pixels
  • 84 x 0.3W RGB LED pixels
  • Segmented pixel control: 14 segments, 9 LEDs per segment

DYNAMIC EFFECTS

  • Pan: 360 infinite (8-16 bit)
  • Tilt: 360 infinite (8-16 bit)
  • Dimming: 0-100% electronic
  • Strobe: variable up to 20Hz
  • Zoom: 4°-45° zoom range
  • Infinite color mixing

CONTROL/CONNECTIONS

  • DMX
  • RDM
  • Control Modes: 24 channel (Basic) / 29 channel (Standard) / 105 channel (Extended)
  • LCD display with onboard control panel
  • Data in/out: 5 pin DMX
  • Power input/output: True 1

ELECTRICAL

  • Input range (AC 100-240v 50/60Hz)
  • Max consumption: 500 watts

COOLING

  • Ultra quiet cooling system. Almost silent operation.

PHYSICAL

  • Weight: 29lbs (13.2kg)
  • Dimensions: 18.9in x 9in x 9.5in (481mm x 229mm x 242mm)

Experience life on the Flipside.
