XB460

Lighting
Hybrid
Atmospheric
Wash

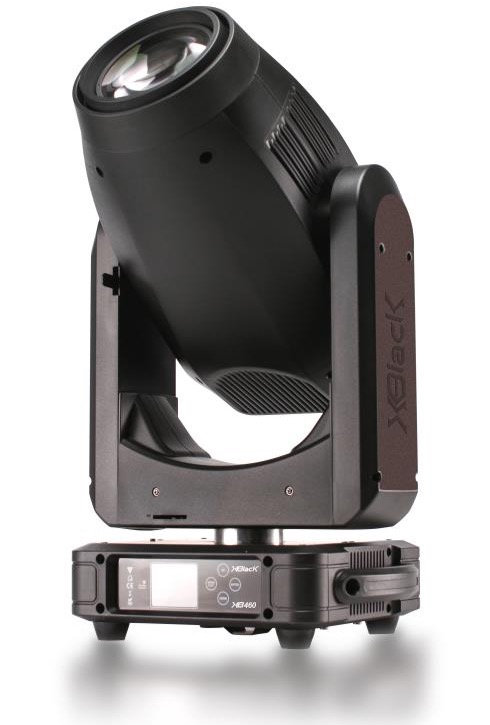

XB460 is a Hybrid performance moving head Profile and wash light (IP20 rating) using the latest generation LED Engine, Lens, and Zoom Ratio combination for maximum light output and beautiful aerial displays.
No items found.
No items found.

Specifications

OPTICS

  • Lamp: 600W White LED
  • CT: 6500k
  • Life: 20,000Hr
  • CRI ≥74 or ≥90

POWER

  • Max power Consumption: 850W Pf ≥0.98
  • Power Supply: electric auto-ranging
  • Input voltage range: 100-240V, 50/60Hz

CONNECTORS

  • Power connector: Seetronic power IN / OUT
  • DMX and RDM data in/out: Locking 3-pin& 5-pin XLR
  • ArtNET port : RJ45

MOVEMENT

  • Pan: 540°/630° optional 16bit
  • Tilt: 270° 16bit
  • Advanced motion system: auto repositioning, fast, smooth, quiet

COLORS

  • CMY color mixing
  • CTO linear
  • CT: 2700K-6500K
  • 1 Color wheel: 6 dichrotic filters + open

GOBOS

  • 1 Rotating gobo wheel with 6 interchangeable + open and shake effect
  • 1 Fixed gobo wheel with 8 gobos + open and shake effect

FEATURES

  • Prism: 5-facet prism with bidirectional rotation
  • Focus: motorized focus, auto focus
  • Shutter: electronic, varible from 1-25Hz or random
  • Iris: 5-100% electronic iris
  • Dimming: 0-100% linear dimming
  • Frost: 0-100% linear adjustment
  • Zoom: 7°-42° linear zoom
  • Animation wheel: rotating water effect

FRAMING SYSTEM

  • 4 fast and smooth framing shutters,
  • Each shutter blade position and angle can be controlled individually
  • Movement is fast and Smooth, with adjustable speed
  • Framing shutters have precise motion with smooth movement
  • The framing module can be rotated at ±45°

DISPLAY

  • 15 second standby auto lock
  • Pan/tilt disengage (hold MENU and ENTER button)

COOLING SYSTEM

  • Advanced liquid cooling system
  • Self-adjusting variable speed fans
  • Selectable ventilation user modes
  • Excess-temperature protection

WORK ENVIRONMENT

  • Max ambient temperature: 104° F
  • Max surface temperature: 149° F
  • Minimum operating temperature 32°F

SOFTWARE

  • Control channel modes: 34/54 channels
  • RDM
  • ArtNET optional

DIMENSIONS AND WEIGHT

  • Net weight: 66lbs
  • Gross weight: 77lbs
  • Body size: 29in x 15.3in x 29.1in
  • Packaging size: 32.6in x 17.7in  x 14.5in
